FEATURES
- Warranty:1 Year
- After-sale Service:Online technical support, Free spare parts
- Project Solution Capability:3D model design, total solution for projects, Cross Categories Consolidation
- Application:Villa
- Design Style:Modern
- Place of Origin:Shandong, China
- Brand Name:Safely lift
- Model Number:GH
- Usage:Residential Elevators
- Drive Type:hydraulic driven
- Elevator Type:Passenger Elevators
- Certification:CE ISO
- Load capacity:0-400kgs
- Speed:0.15-0.2m/s
- Voltage:as required
HOME LIFT INTRODUCTION
There will be a fixed ramp,for users easy comging in and out. In this way, it no need diga pit .
Beautiful appearance, stable lifting Stable row, save space .
Ful-stroke anti-drop system withhigh safety factor.
We add a safety touch panel under the 2 platform. Once the safety touch panel hits the obstacle during the descent, it immediately stops power and stops fa-ling, thus eliminating the potential danger.
The guide rail adopts aviation aluminum alloy to open the mold, with high streng- th and beautiful appearance.
Using differential cylinder,fast lifing S- peed,energy saving.
The power will be cut off if press Eme- rgency Stop button, and the ascending /descending process will be stopped.

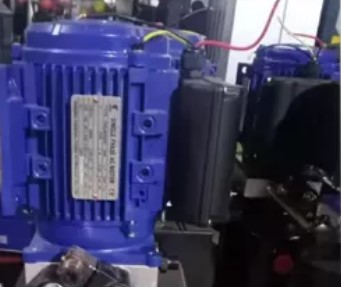

Oil- immersed hydraulic station with low noise (optional, USD260).
| PARAMETER TABLE | |||||
| Model |
Cabin size（mm） |
Aluminum structure inner size(mm) |
Aluminum structure outer size(mm) |
Lifting height(mm) |
Load capacity(kg) |
| VPL2-3.0-H | 1200*1300 | 1540*1380 | 1650*1500 | 3000 | 400 |
| VPL2-3.50-H | 1200*1300 | 1540*1380 | 1650*1500 | 3500 | 400 |
| VPL3-5.00-H | 1200*1200 | 1540*1280 | 1650*1400 | 5000 | 320 |
| VPL3-6.00-H | 1200*1200 | 1540*1280 | 1650*1400 | 6000 | 320 |
| VPL3-7.00-H | 1200*1200 | 1540*1280 | 1650*1400 | 7000 | 320 |
| VPL3-8.00-H | 1200*1200 | 1540*1280 | 1650*1400 | 8000 | 320 |
| VPL4-8.00-H | 1200*1200 | 1540*1280 | 1650*1400 | 8000 | 320 |
| VPL4-9.00-H | 1200*1200 | 1540*1280 | 1650*1400 | 9000 | 320 |
| Custom designs are available in platform size, load capacity, lifting height, etc. | |||||
FAQ
1. who are we?
We are based in Shandong, China, start from 2019,sell to Mid East(8.00%),Domestic Market(8.00%),South Asia(8.00%),Northern Europe(8.00%),Central America(8.00%),Southeast Asia(8.00%),South America(8.00%),North America(8.00%),Eastern Asia(6.00%),Oceania(6.00%),Southern Europe(6.00%),Africa(6.00%),Eastern Europe(6.00%),Western Europe(6.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Home elevator,Lifting equipment,Hoisting machinery
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
PRODUCT DETAILS
PLUG TYPE GUAILD RAIL
Plug type guaild rails make using more convenient, user can pack them up when it doesn’t work, it will save more space.
PLUG TYPE GUAILD RAIL
Plug type guaild rails make using more convenient, user can pack them up when it doesn’t work, it will save more spac
PLUG TYPE GUAILD RAIL
Plug type guaild rails make using more convenient, user can pack them up when it doesn’t work, it will save more space.
PLUG TYPE GUAILD RAIL
Plug type guaild rails make using more convenient, user can pack them up when it doesn’t work, it will save more space.
PLUG TYPE GUAILD RAIL
Plug type guaild rails make using more convenient, user can pack them up when it doesn’t work, it will save more space.
